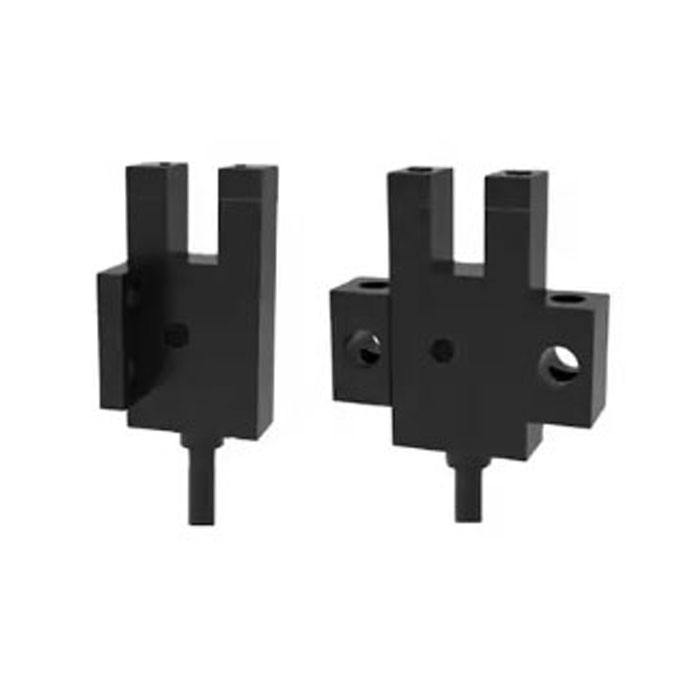

U shape optical proximity sensor
♦Wide voltage:5...24VDC
♦Various size and shapes
♦L/ON and D/ON, optional
♦With flexible twist-resistant cable
Description
| Specifications | |||
| Detection type | Through beam | Response frequency | ≥1KHZ(average value>3KHZ) |
| Rated distance | 5mm | Anti-ambient light | Florescent lamp 1000lux |
| Standard target | >2*0.8mm | Indicator | Red light:output |
| Supply voltage | Infrared LED(940nm) | Ambient temperaturea | -25°C…55°C |
| Hysteresis | <0.025mm | Ambient humidity | 35…95%RH(no condensation) |
| Output | NPN/PNP | Voltage withstand | 1000V/AC 50/60Hz 60s |
| NO/NC Selection | NO/NC by specific wiring connection | Insulation resistance | ≥50MΩ(500VDC) |
| Supply voltage | 5…24VDC | Protection degree | IP50 |
| Load current | ≤100mA | Housing material | PBT |
| Consumption current | ≤35mA | Installation | 3.8mm diameter hole installation |
| Circuit protection | Short-circuit, overload, reverse polarity and zener protectection | Connection |
1m cable |
