NTC series Inclination sensor

Home Automotive sensors NTC series Inclination sensor

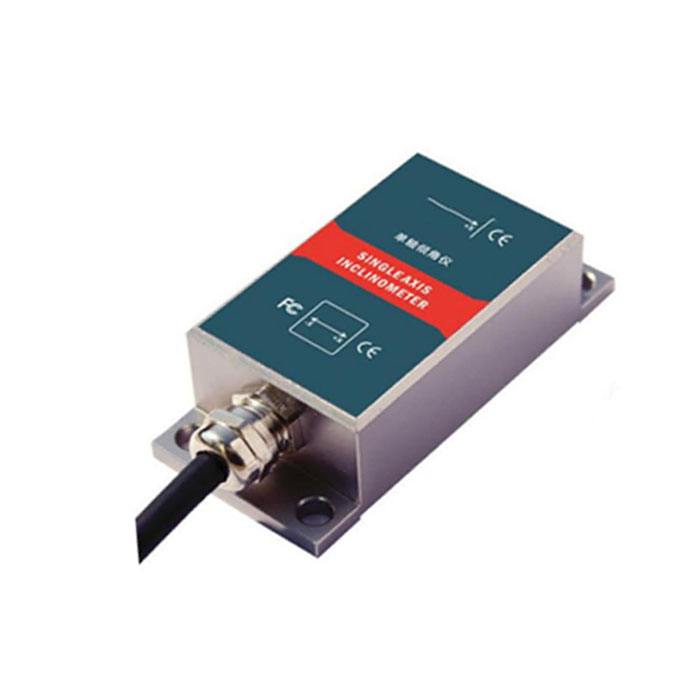

NTC series Inclination sensor

The product uses the latest MEMS sensor production technology for production, made ​​precise compensation and correction to temperature error and nonlinearity error, small measuring range the highest accurate up to 0.03 ° (more precision index, please refer to product Electronic Characteristics), high accuracy , small size, high packaging technology, good capacity to withstand shock and vibration, built-in anti-RF, anti-electromagnetic interference circuit , is particularly suitable for application underground trenchless type of machinery and other harsh industrial environments.

Automotive sensors, Inclination sensor, Featured Products2023-04-14n23

Description

NTC types product features

NTC118T NTC116T NTC120T SCA128T
Single-axis current output inclinometer Single-axis digital output inclinometer Dual-axis voltage output inclinometer Dual-axis current output inclinometer
●Measuring Range :±1~±180° optional ●Measuring Range :±1~±180° optional ●Measuring Range : ±1~±90° optional ●Measuring Range :±1~±90° optional
●Single-Axis Inclinometer ●Single-Axis Inclinometer ●Dual-Axis Inclinometer ●Dual-Axis Inclinometer
●Wide voltage input: 9~36V ●Wide voltage input: 9~36V ●Wide voltage input: 9~36V ●Wide voltage input: 9~36V
●Wide temperature working: -40~+85℃ ●Wide temperature working: -40~+85℃ ●Output interface :0~5V ●Output interface : 4-20mA
●Output interface : 4-20mA ●Resolution: 0.01° ●Wide temperature working: -40~+85℃ ●Wide temperature working: -40~+85℃
●Resolution: 0.01° ●Output mode RS232/RS485/TTL/PWM/CAN 2.0B/IIC (optional) ●Resolution: 0.01° ●Resolution: 0.01°
●Small size :90×40×26mm(customized) ●Small Volume : 90×40×26mm(customized) ●Small Volume : 90×40×26mm(customized)
NTC116Z NTC126V NTC110T
Z-Axis digital output inclinometer Dual-axis vertical installation inclinometer Single-axis voltage output inclinometer
●Measuring Range :±1~±90° optional ●Wide voltage input: 9~36V ●Measuring Range :±1~±180° optional
●Inclination tilt measuring ●Measuring Range :±1~±90° optional ●Single-Axis Inclinometer
●Wide voltage input: 9~36V ●Wide temperature working: -40~+85℃ ●Wide voltage input: 9~36V
●Resolution: 0.01° ●Output mode RS232/RS485/RS422/PWM/CAN2.0B (optional) ●Output interface :0~5V
●Small size :90×40×26mm(customized) ●Resolution: 0.01° ●Wide temperature working: -40~+85℃
●Output mode RS232/RS485/TTL/ CAN 2.0B (optional) ●Small size :90×40×26mm(customized) ●Resolution: 0.01°
●Wide temperature working: -40~+85℃ ●Direct lead cable interface ●Small Volume : 90×40×26mm(customized)
