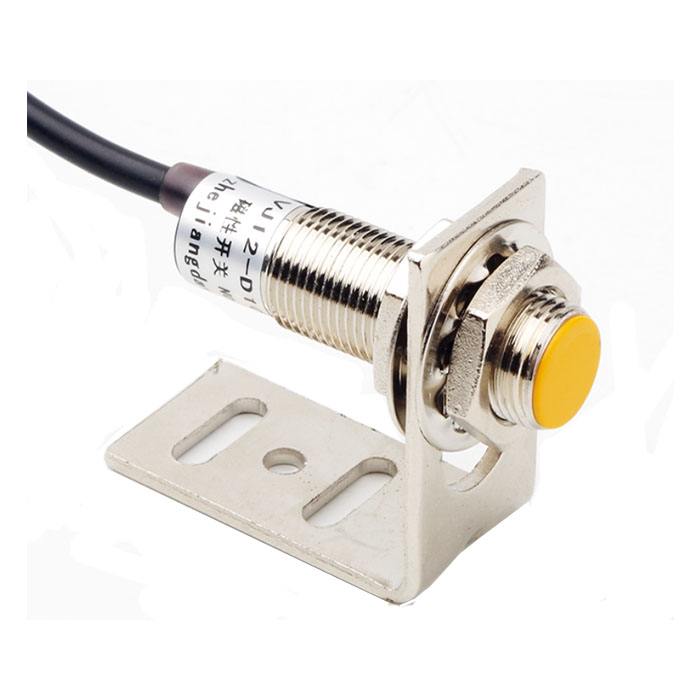

NJK-5002C M12 magnetic switch
The detection distance is determined by the magnetic strength of the target Long life and high reliability
Yellow LED display can check the status of the sensor Economical and simple operation
Description
Product features
| Type | NJK-5002C | ||||
| Installation mode | Flush | ||||
| Sensing distance | 10MM±10% | ||||
| Output mode | NPN/PNP NO/NC | ||||
| Response time | 2ms | ||||
| Working voltage | DC 6-36V | ||||
| Output current | 80-300mA | ||||
| Working temperature | -25℃~+80℃ | ||||
| Short circuit protection | Yes | ||||
| Pole fault protection | Yes | ||||
| Shell material | Metal (copper nickel plating) | ||||
| Conductor length | Standard wire length 1.2m | ||||
