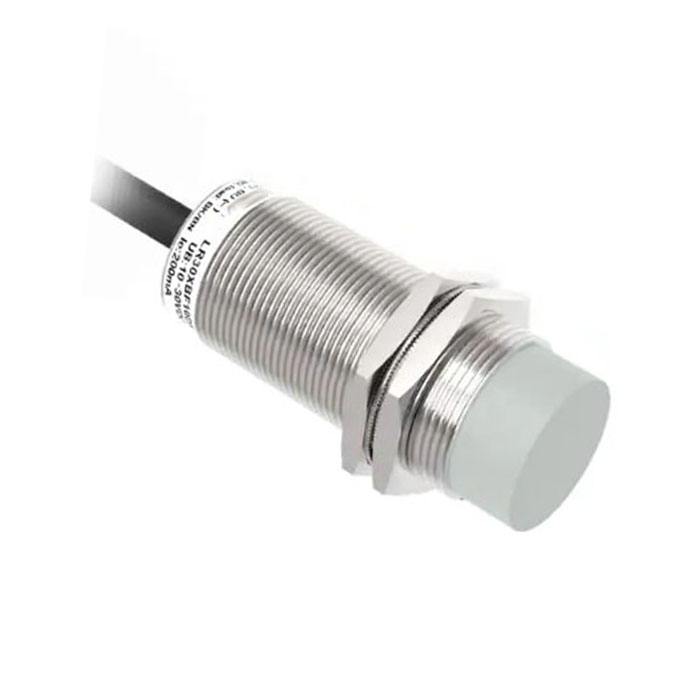

M30 analog 0-10v 0-20mA output
- Providing equivalent signal output along with target position;
- 0-10V, 0-20mA, 4-20mA analog output;
- Perfect choice for displacement and thickness measurement;
Description
Technical specifications
| Mounting type | Flush Non-flush |
| Rated distance(Sn) | 10mm 15mm |
| Assured distance(Sa) | 2…10mm 3….15mm |
| Dimensions | M30*62mm M30*74mm |
| Output |
Current, voltage or current+voltage |
| Supply voltage | 15…30 VDC |
| Standard target | Fe 30*30*1t Fe 40*40*1t |
| Switch point drifts(%/Sr) | ≤±10% |
| Linearity |
≤±5% |
| Repeat accuracy(R) |
≤±3% |
| Load current |
Voltage output: ≥4.7KΩ |
|
Current output: ≤470Ω |
|
| Leakage current | ≤20mA |
| Protection circuit | Reverse polarity |
| Indicator | Yellow LED |
| Ambient temperature | -25ºC…70 ºC |
| Ambient humidity | 35-95%RH |
| Switching frequency(F) | 200Hz 100Hz |
| Voltage withstand | 1000V/AC 50/60Hz 60s |
| Insulation resistance | ≥500MΩ(500VDC) |
| Vibration resistance | 10…50Hz(1.5mm) |
| Protection degree | IP67 |
| Connection type |
2m PVC cable |
| Housing material | Nickel-copper alloy |
