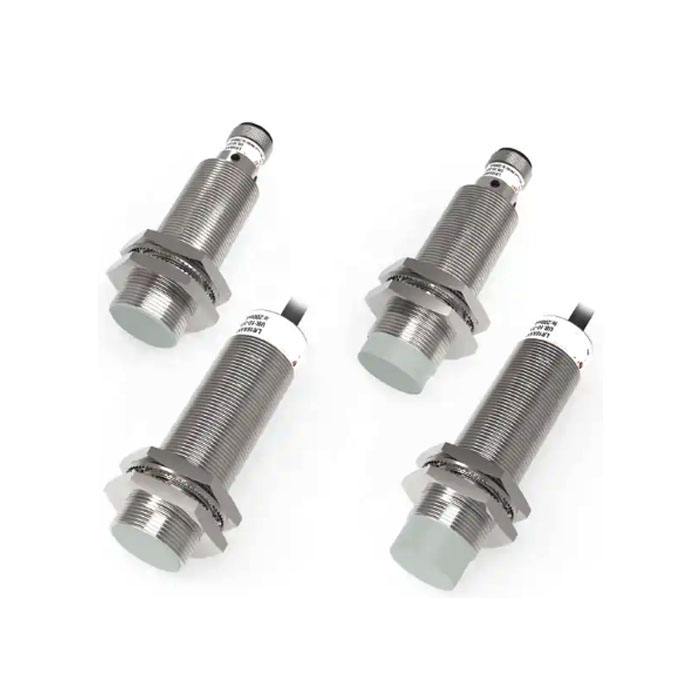

M18 analog 0-10v 0-20mA output
◆Providing equivalent signal output along with target position;
◆0-10V, 0-20mA, 4-20mA analog output;
◆Perfect choice for displacement and thickness measurement
Description
Product features
|
Mounting
|
Flush Non-flush
|
|
Rated distance [Sn]
|
5mm 8mm
|
|
Sensing distance
|
1…5mm 1.6…8mm
|
|
Dimensions
|
M18*61.5mm M18*69.5mm
|
|
Output
|
Current, voltage or current+voltage
|
|
Supply voltage
|
15…30 VDC
|
|
Standard target
|
Fe 18*18*1t Fe 24*24*1t
|
|
Switch-point drifts [%/Sr]
|
≤±10%
|
|
Linearity
|
≤±5%
|
|
Repeat accuracy [R]
|
≤±3%
|
|
Load current
|
Voltage output: ≥4.7KΩ
|
|
Current output: ≤470Ω
|
|
|
Current consumption
|
≤20mA
|
|
Circuit protection
|
Reverse polarity protection
|
|
Output indicator
|
Yellow LED
|
|
Ambient temperature
|
-25℃…70℃
|
|
Ambient humidity
|
35…95%RH
|
|
Switching frequency [F]
|
200 Hz 100 Hz
|
|
Voltage withstand
|
1000V/AC 50/60Hz 60s
|
|
Insulation resistance
|
≥50MΩ(500VDC)
|
|
Vibration resistance
|
10…50Hz (1.5mm)
|
|
Degree of protection
|
IP67
|
|
Housing material
|
Nickel-copper alloy
|
|
Connection type
|
2m PVC cable
|
| shell code | Specifications | Sensing distance | Supply voltage | connection |
| M12 | M12*1*51 M12*1*61 |
2mm 4mm |
10-30 VDC 20-250 VAC |
cable |
| M18 | M18*1*52 M18*1*62 |
5mm 8mm |
10-30 VDC 20-250 VAC 20-250 VAC/DC |
cable |
| M30 | M30*1.5*52 M30*1.5*62 |
10mm 15mm |
10-30 VDC 20-250 VAC 20-250 VAC/DC |
cable |
| M40 | 40*40*53 | 15mm 20mm |
10-30 VDC 20-250 VAC 20-250 VAC/DC |
M12 connector |
| M40SZ | 40*20*68 | 15mm 20mm |
10-30 VDC 20-250 VAC 20-250 VAC/DC |
M12 connector Terminal connect |
| M40XZ | 40*40*120 | 15mm 20mm |
10-30 VDC 20-250 VAC 20-250 VAC/DC |
M12 connector |
