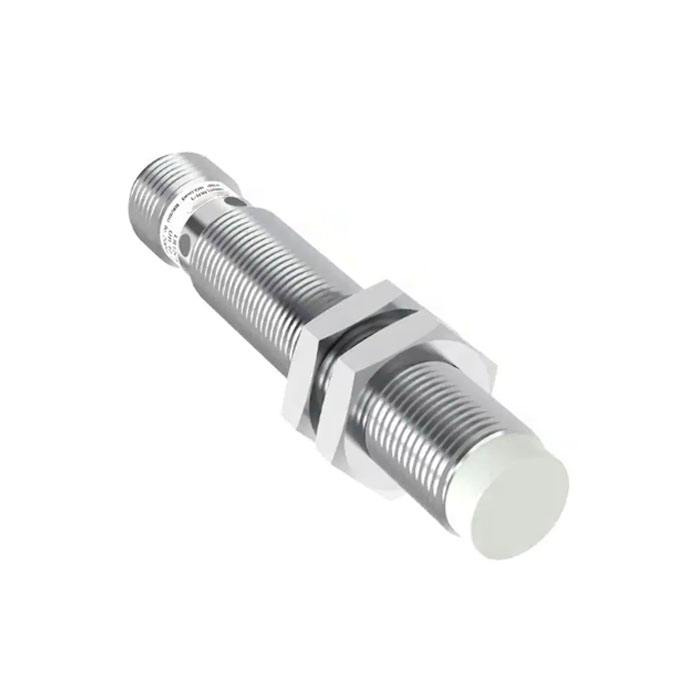

Extended distance M12 with connector
♦Extended sensing distance
♦ASIC design,safe and reliable
♦Perfect choice for metallic targets detection
Description
Technical specifications
| Mounting | Quasi -flush Non-flush |
| Rated distance [Sn] | 2mm 8mm |
| Assured distance(Sa) | 0……3.2mm 0……6.4mm |
| Dimensions | M12*51mm M12*59mm |
| Output | NO/NC(depends on part number) |
| Supply voltage | 10……30VDC |
| Standard target | Fe 12*12*1t Fe 24*24*1t |
| Switch-point drifts(%/Sr) | ≤±10% |
| Hysteresis range(%/Sr) | 1……20% |
| Repeat accuracy(R) | ≤3% |
| Load current | ≤200mA |
| Residual voltage | ≤2.5V |
| Cuttent consumption | ≤15mA |
| Circuit consumption | short-circuit,overload and reverse polarity |
| Circuit protection | Yellow LED |
| Ambient temperature | -25ºC…..70ºC |
| Ambient humidity | 35-95%RH |
| Switching frequency(F) | 800Hz 500Hz |
| Voltage withstand | 1000V/AC 50/60Hz 60s |
| Insulation resistance | ≥50MΩ(500VDC) |
| Vibration resistance | 10….50Hz(1.5mm) |
| Dedree of protection | IP67 |
| Housing material | Nickel-copper alloy |
| Connection type | M12 connector |
