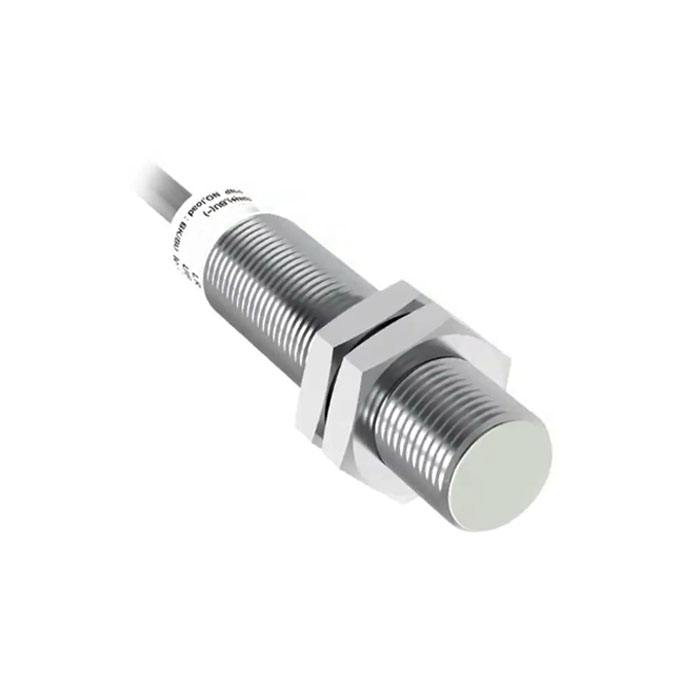

Extended distance M12 metal type
♦Extended sensing distance
♦ASIC design
♦Perfect choice for metallic targets detection
Description
|
Technical specifications
|
|||
|
Mounting
|
Quasi-flush
|
Leakage current
|
≤15mA
|
|
Rated distance[Sn]
|
6mm
|
Circuit protection
|
Short-circuit, overload and reverse polarity
|
|
Assured distance[Sa]
|
0…4.8mm
|
Output indicator
|
Yellow LED
|
|
Dimensions
|
M12*61mm
|
Ambient temperature
|
-25°C…70°C
|
|
Output
|
NO/NC(depends on part number)
|
Ambient humidity
|
35-95%RH
|
|
Supply voltage
|
10-30VDC
|
Switching frequency[F]
|
500Hz
|
|
Standard target
|
Fe18*18*1t
|
Voltage withstand
|
1000V/AC 50/60Hz 60s
|
|
Switch-point drifts[%Sr]
|
≤±10%
|
Insulation resistance
|
≥50MΩ(500VDC)
|
|
Hysteresis range[%Sr]
|
1…20%
|
Vibration resistance
|
10…50Hz(1.5mm)
|
|
Repeat accuracy[R]
|
≤3%
|
Degree of protection
|
IP67
|
|
Load current
|
≤200mA
|
Housing material
|
Nickel-copper alloy
|
|
Residual voltage
|
≤2.5V
|
Connection type
|
2m PVC cable
|
