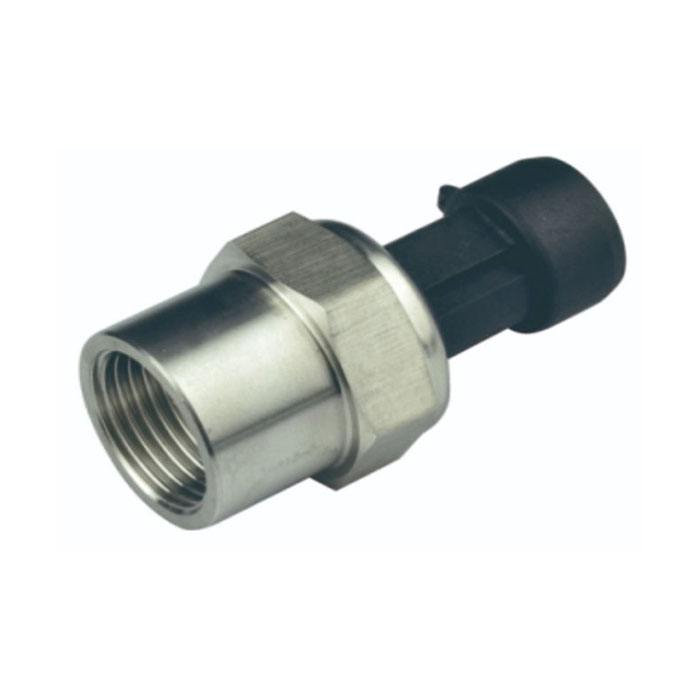

Description

Summary

• Real-time monitoring of the brake system pressure in the storejar，when the pressure in the gas tank is insufficient,thepressure sensor to ABS system to provide accurate feedback ofpressure signal to Ecu, timely discover and eliminate thebrake potential hazard.
• High measuring accuracy, enables the ABS on the brakingsystem to realize accurate control;
• Good reliability and long service life and suitable to workunder the bad environment in the car system.

Product Features

• Operating pressure range: 0~1.47OMpa(range is adjustable)
• Accuracy: ±1.0%F.S.(Linearity,Hysteresis,Repeatability,Calibration)
• Total error band:±2.0%F.S.(-40℃~+85℃)
• Operating temperature:-40℃~+85℃
• Storage temperature:-40℃~+150℃
• Protect pressure: 1.5Mpa 2.3Mpa
• Burst pressure: 2.0Mpa 3.0Mpa
• Operating medium:Compressed
• AirLife cycle: 3 million cycles
• Vibrating:11g(50~2000Hz)
• Ingress Protection:IP65
• Supply voltage:5.0±0.25VDC
• Output voltage: 0.5~4.5VDC (Can be adjusted within 5vDC)
• Supply current: 10mA (Maximum)
• Load impedance: 10KQ(Typical)
• Output response time:3ms
• Overvoltage protection: 16VDC
• Reverse voltage protection: -14VDC
• Short-circuit protection: Yes
• EMC withstand(1MHz—400MHz):100v/m
• ESD withstand:15KV
