Description

Summary

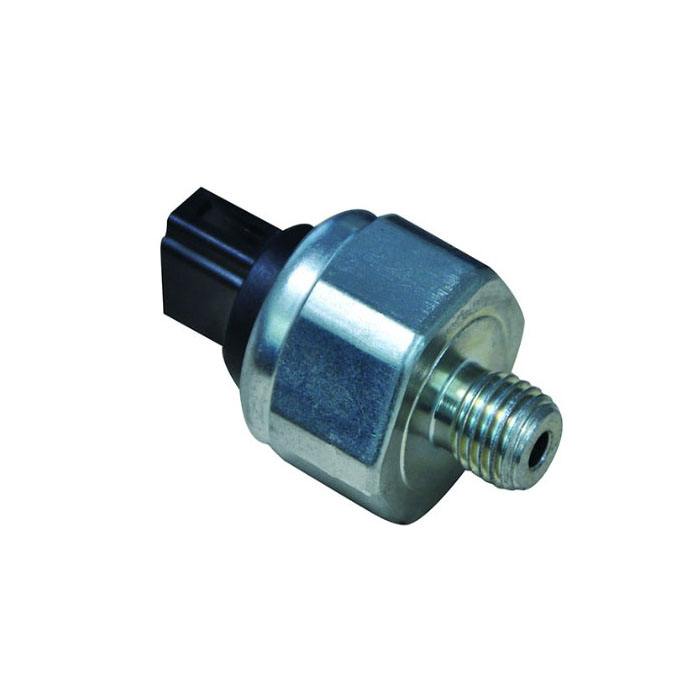

• The hydraulic pressure sensor of the automobile transmissioncan measure the oil pressure of the transmission.
• Product has a high measuring accuracy,enables thetransmission controller to accurate measurement of oilpressure;
• Good reliability and long service life and suitable to workunder the bad environment in the car system;
• Ceramic capacitor structure,good compatibility of measuredMedium.

Product Features

• Operating pressure range: 1~10Mpa(range is adjustable)
• Accuracy: ±1.0%F.S.(Linearity,Hysteresis,Repeatability)
• Total error band: ±3.0%F.S.(-40°C~+135°C)other high-precision versions are available
• Operating temperature: -40℃~+140℃
• Storage temperature: -40°C~+150℃
• Protecting pressure: 15Mpa
• Burst pressure: 20Mpa
• Operating medium:Lubricating oil
• Life cycle: 3 million cycles
• Vibrating:10g(50~2000Hz)
• Ingress Protection:IP68
• Supply voltage:5.0士0.25VDC
• Output voltage: 0.5~4.5vDC(Can be adjusted within 5vDC)
• Supply current: 10mA (Maximum)
• Load impedance: 10KQ(Typical)
• Output response time:3mS
• Overvoltage protection: 16vDC
• Reverse voltage protection: -14VDC
• Short-circuit protection: Yes
• EMC withstand(512MHz—1GHz):5oV/m
• EMC withstand(1MHz—512MHz):100v/m
• ESD withstand:15KV
